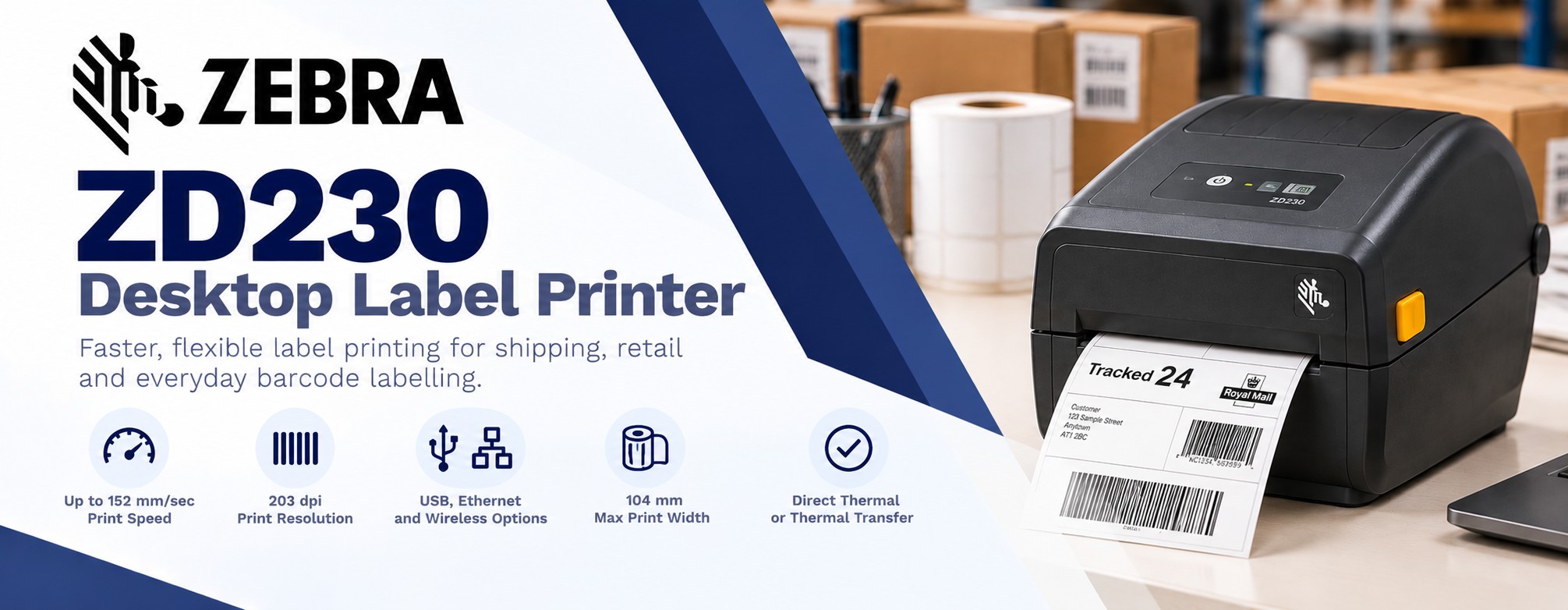

Zebra ZD230 Desktop Label Printer
Reliable desktop label printing with greater speed and flexibility. The Zebra ZD230 is a 4-inch desktop label printer designed for businesses that need dependable barcode, shipping and product identification labels.
Part of Zebra's ZD200 Series, the ZD230 builds on the essential functionality of the ZD220 with faster printing, additional connectivity options and support for different media-handling configurations.
Available in direct thermal and thermal transfer versions, the ZD230 is suitable for ecommerce dispatch, retail labelling, stockrooms, product identification and everyday business applications.
Shop Zebra ZD230 PrintersKey Features of the Zebra ZD230
Direct Thermal or Thermal Transfer
Choose a direct thermal model for shipping and short-life labels, or a thermal transfer model for applications requiring ribbon-based printing on compatible label materials.
203 dpi Print Resolution
Produce clear barcodes, product identification labels, shipping information and general-purpose text at 203 dpi.
Up to 152 mm/sec Print Speed
Print labels at speeds of up to 6 inches per second, supporting faster everyday labelling than the entry-level ZD220.
Flexible Connectivity Options
USB connectivity is available, with Ethernet and wireless options depending on the selected configuration.
104 mm Maximum Print Width
Print common 4-inch shipping labels, barcode labels and product identification formats with a maximum printable width of 104 mm.
Easy Media Loading
Zebra's OpenACCESS design provides convenient access to the media compartment for replacing label rolls and compatible ribbons.
Choose the Right Zebra ZD230 Version
ZD230 Direct Thermal
Prints onto heat-sensitive direct thermal labels without requiring an ink ribbon.
Ideal for: Shipping labels, courier labels, temporary barcode labels and short-life product identification.
ZD230 Thermal Transfer
Uses compatible thermal transfer ribbons to print onto suitable paper or synthetic label materials.
Ideal for: Product identification, asset tracking, stock labels and applications requiring greater print durability.
Where Can the Zebra ZD230 Be Used?
The Zebra ZD230 is designed for businesses that need dependable desktop label printing with greater speed and flexibility than an entry-level printer. Its compact design makes it suitable for packing stations, retail counters, stockrooms and general business environments.
Shipping & Ecommerce Dispatch
Print courier labels, delivery addresses, parcel tracking barcodes and order identification labels for ecommerce orders and everyday dispatch operations.
Retail & Price Labelling
Produce product barcodes, shelf-edge labels, price stickers and stock identification labels for retail shops and stockrooms.
Product & Packaging Labels
Print product codes, batch references, ingredients information and barcode labels for packaging and product identification.
Warehousing & Inventory
Create stock location labels, storage bin identification, carton labels and inventory barcodes for warehouse and stockroom operations.
Healthcare & Administration
Produce compatible identification labels for supplies, files, records and general inventory. Check suitability separately for regulated clinical applications.
Asset & Equipment Tracking
Use the thermal transfer model with suitable labels and ribbons to produce durable asset identification and equipment tracking labels.
Which Labels Can the Zebra ZD230 Print?
The Zebra ZD230 supports a range of compatible label sizes and materials. Choosing the correct print method and consumables is important for achieving the required label durability and print quality.
Shipping & Courier Labels
Direct thermal paper labels are suitable for parcel shipping, courier tracking and other short-life dispatch applications.
Product Barcode Labels
Print SKU labels, product identification barcodes, retail prices and stock references on compatible paper labels.
Durable Synthetic Labels
The thermal transfer model can print on compatible synthetic label materials using suitable ribbons for improved resistance to handling and wear.
Asset Identification Labels
Produce equipment identification and asset tracking labels using suitable thermal transfer materials and ribbons.
Batch & Inventory Labels
Print batch numbers, product references, stock locations and inventory identification codes as required.
Custom Label Sizes
Print a range of compatible label widths and lengths within the printer's media specifications. Check the exact label dimensions before ordering.
Why Choose the Zebra ZD230?
The ZD230 offers a practical balance of printing speed, connectivity and ease of use. It is particularly suitable for businesses that need more flexibility than a basic USB-only printer but do not require the advanced features of Zebra's higher-end desktop models.
Faster Label Printing
Print at speeds of up to 152 mm/sec, helping businesses process shipping labels and everyday barcode printing more efficiently.
Flexible Connectivity
Choose from available USB, Ethernet and wireless configurations to suit your workstation and network requirements.
Compact Desktop Design
Fits neatly into packing stations, retail counters, stockrooms and office workspaces.
Easy Media Changes
Zebra's OpenACCESS design provides convenient access for loading labels and compatible ribbons.
Longer Ribbon Options
Selected thermal transfer configurations support 300 m ribbons, reducing the frequency of ribbon changes compared with shorter ribbon formats.
Flexible Print Methods
Choose direct thermal for short-life labels or thermal transfer for applications requiring more durable ribbon-based printing.
Zebra ZD230 vs Zebra ZD421
Both the Zebra ZD230 and ZD421 are 4-inch desktop label printers suitable for shipping, barcode and product identification. The ZD230 focuses on essential business printing, while the ZD421 offers additional features, configuration options and printer management capabilities.
| Feature | Zebra ZD230 | Zebra ZD421 |
|---|---|---|
| Printer Type | Desktop label printer | Desktop label printer |
| Print Methods | Direct thermal or thermal transfer | Direct thermal or thermal transfer |
| Print Resolution | 203 dpi | 203 dpi or 300 dpi |
| Maximum Print Speed | 152 mm/sec | Up to 152 mm/sec at 203 dpi |
| Maximum Print Width | 104 mm | 104 mm at 203 dpi |
| Connectivity | USB; optional Ethernet and wireless | USB and USB Host; optional Ethernet and wireless |
| Printer Management | Essential configuration features | Zebra Print DNA and Link-OS capabilities |
| User Interface | Basic status controls | Advanced status indicators and controls |
| Typical Applications | Shipping, retail and general barcode labels | Retail, healthcare, inventory and advanced desktop printing |
Which Zebra Desktop Label Printer Should You Choose?
Choose the Zebra ZD230 if you need reliable everyday barcode and shipping label printing, with optional connectivity and faster performance than the ZD220.
Choose the Zebra ZD421 if you require 300 dpi printing, additional printer management features, more configuration options or greater flexibility for future requirements.
Both models are suitable for common desktop labelling applications. The best choice depends on your print resolution, connectivity, label materials and operating requirements.
Zebra ZD230 Technical Specifications
The Zebra ZD230 is a 4-inch desktop label printer available in direct thermal and thermal transfer configurations. Specifications and connectivity options vary by model, so check the individual SKU before ordering.
| Specification | Details |
|---|---|
| Printer Type | 4-inch desktop barcode label printer |
| Printer Family | Zebra ZD200 Series |
| Print Methods | Direct thermal or thermal transfer, depending on model |
| Print Resolution | 203 dpi (8 dots/mm) |
| Maximum Print Speed | 152 mm/sec (6 inches/sec) |
| Maximum Print Width | 104 mm |
| Media Width | 25.4 mm to 112 mm |
| Maximum Media Roll Diameter | 127 mm |
| Media Types | Roll-fed or fan-fold, die-cut and continuous labels, tags and compatible wristbands |
| Media Sensors | Gap and movable black-mark sensors |
| Ribbon Support | 74 m or 300 m, depending on thermal transfer configuration |
| Connectivity | USB 2.0; Ethernet and wireless options on selected models |
| Printer Languages | ZPL II and EPL2 |
| Media Handling | Optional peeler or cutter, depending on configuration |
| Operating Temperature | 4.4°C to 41°C |
| Typical Applications | Shipping, retail, stock control, product identification and asset labels |
Note: Confirm the print method, ribbon capacity, connectivity and accessories against the exact Zebra ZD230 part number.
Zebra ZD230 Frequently Asked Questions
Can the Zebra ZD230 print shipping labels?
Yes. The ZD230 supports compatible shipping and courier labels, including common 4-inch formats used for parcel dispatch and tracking.
Does the Zebra ZD230 use ink?
No. The ZD230 uses thermal printing technology. Direct thermal models print onto heat-sensitive labels without a ribbon, while thermal transfer models use a compatible ribbon.
What is the difference between direct thermal and thermal transfer?
Direct thermal printing is generally suitable for short-life labels such as shipping and dispatch labels. Thermal transfer printing uses a ribbon and compatible media to produce labels with greater resistance to handling and wear.
Can the Zebra ZD230 print 4 x 6 inch labels?
Yes. The printer supports compatible 4 x 6 inch shipping labels, provided the media meets its width, length and sensing requirements.
Does the Zebra ZD230 have Wi-Fi?
Wireless connectivity is available on selected configurations. Check the individual part number to confirm whether Wi-Fi or Bluetooth is included.
Can the ZD230 print QR codes?
Yes. The ZD230 supports common 1D and 2D barcode formats, including QR Code, Data Matrix and PDF417, through compatible label software and printer commands.
Can the ZD230 print durable product labels?
Yes. The thermal transfer version can print on compatible synthetic label materials using an appropriate ribbon. Durability depends on the label material, ribbon and conditions of use.
What ribbons does the Zebra ZD230 use?
Selected thermal transfer models support 74 m or 300 m ribbons, depending on configuration. Ribbon width, core size and formulation must match the printer and label material.
Is the Zebra ZD230 suitable for ecommerce businesses?
Yes. Its compact design and support for shipping labels make it a practical option for online retailers, packing stations and smaller dispatch operations.
What is the difference between the Zebra ZD230 and ZD421?
The ZD230 provides essential desktop label printing at 203 dpi with selected connectivity options. The ZD421 offers additional features, including a 300 dpi option, more advanced printer management and broader configuration choices.
