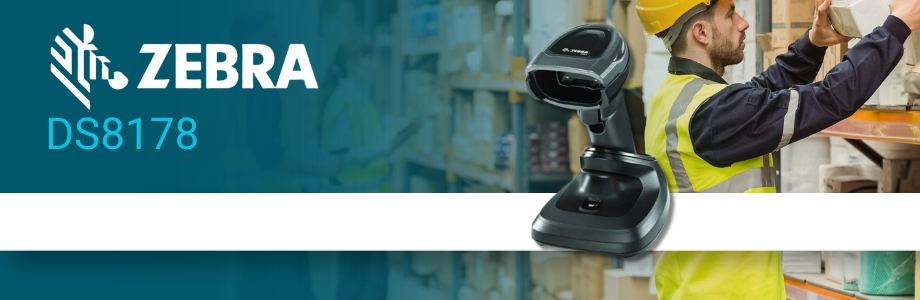

Zebra DS8178 Cordless Barcode Scanner
Premium cordless 1D and 2D barcode scanning for retail, EPOS, inventory, click-and-collect and high-volume business applications.
The Zebra DS8178 combines the scanning performance of Zebra's premium DS8100 Series with the freedom of Bluetooth wireless operation.
Designed for businesses where barcode scanning is frequent and operationally important, the DS8178 captures conventional printed barcodes, difficult or damaged labels and compatible electronic barcodes displayed on mobile devices.
With a 1280 × 960 image sensor, Bluetooth connectivity, IP52 sealing, 1.8m drop resistance and flexible battery or PowerCap power options, it is a substantial step up from an entry-level cordless scanner.
Zebra DS8178 at a Glance
1D & 2D
Capture common linear and 2D barcode formats including QR Code, Data Matrix, PDF417 and conventional retail barcodes.
Cordless Bluetooth
Move around the checkout, counter or workstation without being restricted by a scanner cable.
1280 × 960
High-resolution imaging supports premium barcode capture across demanding applications.
Up to 61cm Range
Extended everyday working range makes it easier to reach items without precise close positioning.
Up to 65,000 Scans
PowerPrecision+ battery configurations are designed for intensive scanning across long working periods.
Phone Screens
Capture compatible digital loyalty cards, coupons, tickets and other electronic barcodes.
1.8m Drops
Designed to withstand multiple 1.8 metre drops to concrete.
IP52
Defined environmental sealing for demanding everyday commercial use.
Premium Cordless Scanning for High-Volume Workflows
The DS8178 is designed for applications where scanning performance, reliability and freedom of movement matter throughout the working day.
Retail Checkout
Scan products rapidly while retaining the freedom to reach larger or awkward items around the checkout.
Click & Collect
Capture order, customer, parcel and product barcodes during collection and fulfilment workflows.
Inventory
Move around stock rooms and nearby storage areas without being tied directly to the workstation.
Customer Service
Handle returns, loyalty, vouchers and product identification from a flexible cordless scanner.
Designed to Capture Difficult Barcodes
The DS8100 platform is designed for much more than perfectly printed retail labels. Zebra combines a high-resolution imaging sensor with PRZM Intelligent Imaging technology to improve capture of challenging barcodes.
Damaged
Designed to capture supported barcodes even where labels have suffered everyday wear or damage.
Poorly Printed
Advanced imaging helps deal with barcodes where print quality is less than ideal.
Crinkled
Useful for flexible packaging and labels that are not perfectly flat.
Faded
Designed to improve capture of supported labels that have deteriorated during handling or storage.
Dense
Available configurations include high-density scanning for smaller and more tightly packed barcodes.
Low Contrast
The scanner supports barcode capture down to a 16% minimum reflective difference.
Mobile Screens
Read compatible electronic barcodes displayed on phones and other digital devices.
Multiple Barcodes
Zebra Multi-Code Data Formatting can support workflows where multiple barcodes need to be captured together.
Why Choose a Cordless Barcode Scanner?
Cordless operation becomes valuable whenever the barcode cannot conveniently be brought directly to a fixed scanner.
Large Products
Take the scanner to large or heavy products rather than trying to move the item across the counter.
Shopping Trolleys
Reach products that remain inside a basket or trolley during checkout.
Stock Rooms
Move around nearby inventory locations while remaining connected to the host system.
Flexible Workstations
Use one scanner around a counter, desk or operational area without managing a trailing interface cable.
Scan Without Precise Close Positioning
Zebra specifies scanning ranges of up to approximately 61cm / 24 inches for suitable barcode types and sizes.
Reach Further
The extended everyday working range helps operators capture barcodes on products that cannot easily be positioned directly beside the scanner.
Bright Aiming Spot
A visible aiming pattern helps the operator identify the intended barcode when scanning items from greater distances.
Actual scanning distance depends on the barcode symbology, size, density, print quality and scanner configuration.
DS8178 Battery & Power Options
One of the more unusual DS8178 features is the choice between conventional rechargeable battery power and Zebra's PowerCap capacitor technology.
PowerPrecision+ Battery
Up to 65,000 scans per charge with the 2,500mAh battery configuration.
Designed for demanding environments where the scanner may be used intensively throughout long shifts.
The PowerPrecision+ platform also provides battery-health information to help identify ageing batteries before they begin disrupting operations.
PowerCap Capacitor
Up to 2,000 scans from the PowerCap capacitor configuration.
Designed for suitable workflows where very rapid recharging and eliminating a conventional battery can be advantageous.
The correct power option depends on scanning volume and how the scanner will be used throughout the day.
Check the complete MPN. Battery type, cradle, colour, scan range and included accessories can vary between DS8178 configurations.
Know the Scanner Is Ready Before the Shift Starts
Power Charge Gauge
A dedicated charge gauge allows staff to see whether the scanner has sufficient power before beginning work.
Battery Health Data
PowerPrecision+ provides battery metrics that can help businesses identify batteries approaching replacement.
Cradle Charging
Compatible cradles provide a defined home for the scanner while supporting charging and host connectivity.
Features Designed for Cordless Scanner Management
Virtual Tether
Supported configuration can alert users when a scanner is taken outside the expected working area or left away from its cradle.
Scanner Paging
If a scanner is misplaced nearby, the cradle's paging functionality can help staff locate it.
Wi-Fi Friendly Mode
Bluetooth operation can be configured to reduce interference with channels used by the site's wireless LAN.
Zebra DS8178 for Retail & EPOS
The DS8178 is particularly strong in busy retail environments where operators need premium barcode capture but also need to move the scanner away from its cradle.
Point of Sale
Capture product barcodes quickly during everyday checkout operations.
Mobile Coupons
Read compatible promotional barcodes presented on customer smartphones.
Loyalty
Capture compatible physical and digital loyalty barcodes.
Age Verification
Appropriate configurations can support workflows involving barcode data from driving licences and other supported documents.
Returns
Use at customer-service desks for product, receipt and supported returns workflows.
Click & Collect
Scan products, customer orders and collection identifiers during fulfilment.
Stock Checking
Move away from the till or workstation to capture nearby inventory barcodes.
Self Checkout
Cordless scanning can help customers or staff reach larger items that remain in a trolley.
Printed Labels and Digital Barcodes
Modern retail and service workflows increasingly involve a mixture of physical labels and barcodes displayed electronically.
Product Labels
Capture conventional UPC, EAN and other common retail barcodes.
QR Codes
Read QR and other supported 2D codes for suitable customer and operational workflows.
Phone Screens
Capture compatible codes from mobile displays, including dimly lit screens.
Digimarc
Supported configurations include Digimarc digital watermark scanning technology.
Designed for Intensive Everyday Use
The DS8178 is a general-purpose scanner rather than an ultra-rugged industrial model, but its physical specification is designed for demanding commercial use.
1.8m Drops
Designed to withstand multiple drops from 1.8 metres onto concrete.
2,000 Tumbles
Specified to withstand 2,000 tumbles from 0.5 metres.
IP52
Provides defined protection against environmental exposure encountered in everyday commercial operation.
DS8178 vs DS8108 vs DS2278
| Feature | Zebra DS8178 | Zebra DS8108 | Zebra DS2278 |
|---|---|---|---|
| Connection | Cordless | Corded | Cordless |
| Positioning | Premium performance | Premium performance | Value / everyday scanning |
| 1D / 2D | Yes | Yes | Yes |
| Image Sensor | 1280 × 960 | 1280 × 960 | Lower-tier platform |
| Battery Required | Battery or PowerCap | No | Battery |
| Freedom of Movement | Excellent | Limited by cable | Good |
| High-Volume Checkout | Excellent fit | Excellent fit | Everyday use |
| Difficult Barcodes | Premium DS8100 performance | Premium DS8100 performance | General-purpose |
Simple choice: DS8108 for premium corded scanning, DS8178 for premium cordless scanning, or DS2278 where straightforward cordless scanning and lower acquisition cost are the priorities.
Zebra DS8178-HC for Healthcare
The DS8178 family also includes dedicated healthcare configurations designed for environments where cleaning, patient workflows and healthcare-specific deployment requirements are important.
Healthcare White
Dedicated healthcare configurations use Zebra's Healthcare White housing.
Disinfectant Ready
The DS8178-HC housing is designed for use with Zebra-approved disinfecting agents.
Patient Identification
Suitable for supported patient wristband and identification barcode workflows.
Specimen Tracking
High-density scanning capability supports suitable laboratory and specimen barcode applications.
Standard DS8178 and DS8178-HC are not identical configurations. Choose the dedicated healthcare model where disinfectant-ready construction and healthcare deployment features are required.
Zebra DS8178 Specifications
| Specification | Zebra DS8178 |
|---|---|
| Scanner Type | Cordless handheld area imager |
| Barcode Types | 1D and 2D |
| Image Sensor | 1280 × 960 pixels |
| Field of View | 48° horizontal × 37° vertical nominal |
| Minimum Print Contrast | 16% minimum reflective difference |
| Wireless | Bluetooth 4.0 with BLE |
| Power Options | PowerPrecision+ battery, Li-Ion battery or PowerCap capacitor depending on configuration |
| Battery Capacity | Up to 65,000 scans with 2,500mAh battery configuration |
| PowerCap Capacity | Up to 2,000 scans |
| Cradle Host Interfaces | USB, RS-232, Keyboard Wedge and TGCS / IBM 46XX over RS485 |
| Sealing | IP52 |
| Drop Specification | Multiple 1.8m drops to concrete |
| Tumble Specification | 2,000 tumbles at 0.5m |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Scanner Dimensions | Approximately 168 × 66 × 107mm |
| Scanner Weight | Approximately 235g depending on configuration |
| Colours | Twilight Black, Nova White; Healthcare White on DS8178-HC |
Which Zebra DS8178 Should I Buy?
The complete Zebra manufacturer part number matters because DS8178 products can differ by scan configuration, power option, cradle, colour and interface kit.
1. Standard or Healthcare?
Choose the standard DS8178 for conventional commercial use or DS8178-HC where healthcare-specific construction is required.
2. Standard or High Density?
Consider the size and density of the barcodes being scanned when choosing the scan configuration.
3. Battery or PowerCap?
Choose the power system according to scanning volume, shift length and charging requirements.
4. Which Cradle?
Standard and presentation cradle configurations suit different workstation layouts and scanning workflows.
5. Which Interface?
Confirm how the cradle needs to connect to the EPOS terminal, PC or other host equipment.
6. Check the Full MPN
Compare complete manufacturer part numbers rather than assuming two products advertised as “DS8178” are identical kits.
Replacing an existing scanner? Send us the complete MPN from the scanner or existing supplier quotation. For a new deployment, tell us how the scanner will be used and what it needs to connect to.
Available Zebra DS8178 products and current pricing should remain directly below this guide.
DS8178 Application Guide
| Application | Configuration to Consider |
|---|---|
| Busy retail checkout | Standard DS8178 with suitable cradle |
| Large / awkward checkout items | DS8178 cordless |
| Click & collect | DS8178 cordless |
| Stock room scanning | DS8178 cordless |
| Small dense barcodes | High-density configuration |
| Healthcare | DS8178-HC |
| Long intensive shifts | PowerPrecision+ battery configuration |
| Fixed workstation only | Consider DS8108 if cordless mobility is unnecessary |
| Budget-conscious everyday cordless scanning | Compare DS2278 |
Zebra DataCapture DNA
The DS8178 also supports Zebra software tools designed to simplify scanner configuration, deployment and management.
123Scan
Configure scanner parameters, update firmware and access scanner information.
Scanner Management
Supported Zebra management tools can assist with remotely managing larger scanner deployments.
AutoConfig
Compatible cradles can automatically apply stored configuration when a scanner is paired with a different workstation.
Battery Visibility
PowerPrecision+ information helps organisations monitor battery condition across suitable scanner deployments.
Zebra DS8178 FAQs
Is the Zebra DS8178 wireless?
Yes. The DS8178 is the cordless model in Zebra's DS8100 Series and uses Bluetooth wireless connectivity.
Does the DS8178 scan QR codes?
Yes. The DS8178 is a 1D and 2D area imager and supports QR Code, Data Matrix, PDF417 and other common barcode formats.
Can the DS8178 scan barcodes from phones?
Yes. The DS8100 platform is designed to capture compatible electronic barcodes displayed on mobile devices as well as printed labels.
What is the difference between DS8108 and DS8178?
The DS8108 is corded while the DS8178 is cordless. Both belong to Zebra's premium DS8100 scanning platform.
How many scans can the DS8178 battery provide?
Zebra specifies up to 65,000 scans for the 2,500mAh battery configuration. Actual performance depends on usage and configuration.
What is DS8178 PowerCap?
PowerCap is a capacitor-based alternative to a conventional battery. Zebra specifies up to 2,000 scans for the PowerCap configuration.
Is the DS8178 rugged?
It is designed for demanding commercial use, with IP52 sealing, multiple 1.8m drop resistance and a 2,000-tumble specification. For harsher industrial environments, Zebra's ultra-rugged DS3600 family is more appropriate.
Is there a healthcare DS8178?
Yes. The DS8178-HC is a dedicated healthcare version with Healthcare White disinfectant-ready construction and healthcare-focused configurations.
Buy Zebra DS8178 Scanners from Tek Direkt
Exact MPN Sourcing
Send us the complete Zebra manufacturer part number and quantity for a like-for-like quotation.
Configuration Help
Compare scanner, battery, PowerCap, cradle and interface requirements before ordering.
Standard & Healthcare
Source conventional DS8178 and suitable DS8178-HC healthcare configurations.
Single Units or Rollouts
Buy an individual replacement scanner or request pricing for larger deployments.
Need a Price on Zebra DS8178 Scanners?
Send us the Zebra MPN and quantity and we'll provide a price.
Don't know the MPN? Tell us whether you need standard or healthcare, how the scanner will be used and what equipment it needs to connect to.
Already have another supplier's quote? Send that over too.
No calls. No meetings. No messing about. Just another price.
Request a DS8178 Quote
